Overview
At Cadamps Technology, we specialise in wave solder pallets and selective soldering fixtures for through-hole and mixed-technology PCB assembly. Our custom tooling ensures proper PCB alignment, thermal stability, and solder flow control throughout the production process.
Our production wave solder pallets are made with ESD composite and Durastone materials, ensuring high thermal resistance, dimensional accuracy, and long service life — even under repeated wave soldering and selective soldering cycles.
Our team has a deep understanding of the challenges in wave soldering, and our wave fixture designs are engineered to provide improved performance. We incorporate additional clearance in the soldering area, solder relief cavities, gas channels, and chamfered openings on the backside of the pallet — all aimed at enhancing solder flow, minimizing bridging, and ensuring consistent solder joint quality.
Wave & Selective Solder Pallet Portfolio
Wave Solder Pallet
Designed from ESD-safe composites and Durastone, providing superior heat resistance and precision for through-hole PCB soldering.
Selective Solder Pallet
Shields SMT areas during selective soldering, ensuring only target through-hole pads are exposed for solder flow.

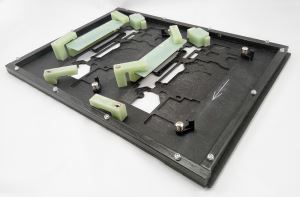

PCB Solder Carrier Fixture
Custom carriers for wave or selective soldering — maintain board flatness, minimize handling, and improve process efficiency.
Why Wave & Selective Solder Pallets Are Important ?
- Protect SMT components and gold fingers from direct solder contact.
- Ensure precise PCB positioning during the soldering process.
- Enhance solder flow and reduce bridging, skipping, and rework.
- Eliminate manual masking labor — improving process repeatability.
- Reduce thermal stress and maintain consistent board quality.
Our Wave & Selective Solder Pallet Capabilities
Custom Wave Solder Pallets
Designed from ESD composite and Durastone materials, our wave solder pallets withstand high temperatures while providing dimensional accuracy. Features include solder dams, alignment pins, and edge rails for stable PCB positioning and clean solder flow.
Selective Solder Fixtures
-
Our selective solder pallets mask SMT areas while exposing specific through-hole leads for soldering. Each fixture is engineered to maintain mechanical integrity, repeatability, and excellent solder joint quality.
Material Engineering
We use high-Tg ESD composites and Durastone for heat resistance and process reliability. These materials are non-contaminating, non-stick, and dimensionally stable under repeated wave and selective solder cycles.
Materials & Design Highlights
We select the right combination of materials and mechanical design based on your product and process requirements:
- High-temperature ESD composite and Durastone construction.
- Aluminum stiffener frames for structural rigidity and repeatability.
- Gas relief grooves, solder dams, and precision cut-outs for solder control.
- Top hats, clamps, and support pins for component hold-down and alignment.
- Optimized CAD/CAM design for perfect board fit and flow balance.
Why choose CADAmps Technology ?
- Over 11 years of expertise in wave solder pallet manufacturing in India.
- Complete in-house design, CAD modeling, and CNC machining.
- Rapid turnaround for prototypes and high-volume production runs.
- Tailored solutions for EMS, OEM, and PCB assembly industries.
- Competitive pricing and full engineering support.
How to Get Started ?
- Send your PCB files (Gerber, DXF, or PDF) and soldering process details.
- Receive a fixture design concept and quotation for approval.
- Manufacture, inspect, and test fixtures before delivery.
- Receive installation support and design revisions if required.
Contact & Quote
Looking for a trusted wave solder pallet manufacturer in India? Cadamps delivers durable, precision-engineered solutions for wave and selective soldering processes.
Phone: +91-9629324956 | Website: cadamps.com
